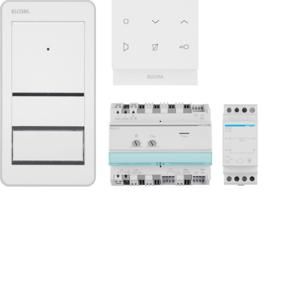

HOME AudioSet 1 participant AP 2D outdoor station white/indoor station TOUCH polar white. Audio intercom set in accordance with DIN EN 50486 in 2-wire technology consisting of indoor station audio TOUCH, outdoor station audio HOME, line supply and safety transformer. Audio indoor station for hands-free calling for intercom in accordance with DIN EN 50486 in 2-wire technology. Indoor station for wall mounting or on a device box in accordance with DIN 49073 consisting of support plate with connection terminal block and matching audio design frame, with 6 symbols and capacitive function keys with tactile feedback, 3 of which are backlit (open, mute and answer call). Functions: Answering/calling, listening/speaking, opening the door and switching on the light, acoustic and visual call signaling, 16 adjustable ringtone melodies, door/floor or internal call assignment, ringtone volume and microphone sensitivity can be adjusted in stages and ringtone can be switched off. Parallel operation of up to 3 indoor stations. Floor call forwarding to indoor stations with the same address. Hands-free calling or push-to-talk. DREHFIX function: One-man commissioning by addressing with rotary coding switch. Special functions can be locked using DIP switches. Outdoor station for surface mounting in plastic housing, color camera with scratch-resistant cover, no visible screws, flush-mounted nameplate(s) (changeable from the front) with call button(s) including white LED backlighting and plug-in connection terminal block with screw terminals. Pre-wired front panel with electronic components in encapsulated monoblock design with loudspeaker, microphone and camera. Device configuration via rear LED display with 3 soft keys and 7-segment display, display mode can be rotated 180 degrees for optimal readability and usability as well as automatic addressing when the power is switched on for the first time. Button lighting is switched on depending on the ambient light, can be adjusted to the ambient conditions using a brightness sensor. Functions: Camera can be switched on and locked horizontally and vertically from the front, integrated IR lighting is switched on depending on the ambient light to support the camera function in the dark, integrated camera heating to prevent condensation and frost on the camera ball. Integrated door opener contact, call button with light/door opener/relay function adjustable. Volume, microphone sensitivity, door opener function and call button backlight adjustable. Call button with acknowledgement tone (can be switched off) and tactile feedback. Loudspeaker and microphone protected against sabotage. One-man commissioning through LED display configuration.
