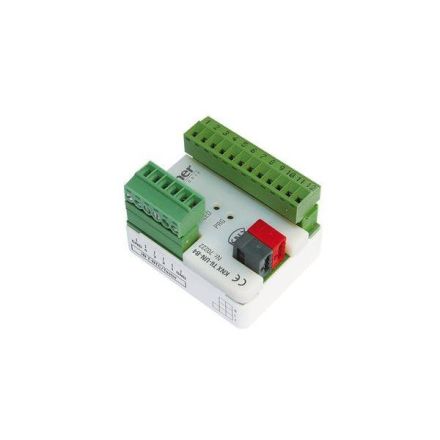

The KNX T6-UN-B4 temperature evaluation unit has six temperature inputs for T-100 or T-130 sensors and four analog/digital inputs that can be used for buttons or for T-NTC temperature sensors, for example. The temperature measurements from all inputs can be processed with external measurements to create a mixed value (total temperature, average temperature). The KNX T6-UN-B4 provides six switching outputs with adjustable limit values. Six PI controllers control heating and cooling (one or two-stage). Additional links can be set up using logic gates. Sensors for KNX T6-UN-B4: No. 30516 T-NTC for analog/digital inputs No. 30517 T-100 for temperature sensor inputs No. 30518 T-130 for temperature sensor inputs
