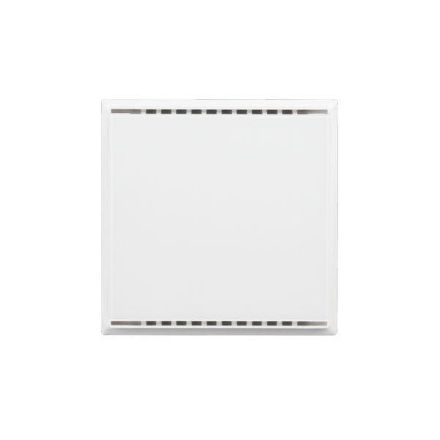

The KNX TH-UP gl CH sensor measures the temperature and humidity in the room and calculates the dew point. The indoor sensor can receive external values of temperature and humidity via the bus and process them with its own data to create total values (mixed values, e.g. room average). The KNX TH-UP gl CH has adjustable limit values. The limit value outputs and other communication objects can be linked via AND and OR logic gates. In addition, an integrated manipulated variable comparator can compare and output values received via communication objects. Integrated PI controllers control ventilation (according to CO2 concentration and humidity) and heating/cooling (according to temperature). The KNX TH-UP gl CH can issue a warning to the bus as soon as the comfort zone (according to DIN 1946) is left. The housing is supplemented with a frame from the range of switches used in the building and thus fits seamlessly into the interior design. Models: No. 70644 KNX TH-UP gl CH pure white RAL 9010 No. 70645 KNX TH-UP gl CH jet black RAL 9005 Delivery without frame
