ELSO WDE011031 cross switch with central plate white Renova

ELSO WDE011031 cross switch with central plate white Renova

In stock

SKU: 433089

Price on request

€24.07

€0

Into a basketIn the basketGo

Overview

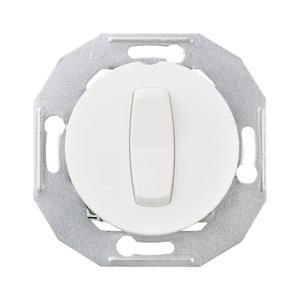

Cross switch with central plate white RENOVA

Property	Value
Color:	white
Suitable for protection class (IP):	IP20
Circuit type:	Cross switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Flush-mounted
Push button:	no
Composition:	Base element with central cover plate
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	9010
Nominal voltage:	250 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug-in terminal
Number of modules (with modular design):	1
Lighting:	no
Rated current:	16 A
Installation depth:	15 mm
Device width:	71 mm
Device height:	71 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of device box:	60 mm

Characteristics

Feedback contactNo

Number of actuating rockers1

Circuit typeCross switch

LightingNo

Switching current for fluorescent lamps16 AX

Push buttonNo

Washing machine switchNo

Manufacturer

HANWDE011031

GTIN3606480697968

Connection typePlug-in terminal

Surface finishFrosted

Operating modeRocker/Button

Mounting typeClaw/screw fastening

Rated current16A

Installation depth15 mm

Color

Device width71 mm

Device height71 mm

Halogen freeYes

Min. depth of the device box60 mm

With mounting plateNo

Mounting typeFlush-mounted

Nominal voltage250V

SurfaceUntreated

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationBase element with central cover plate
