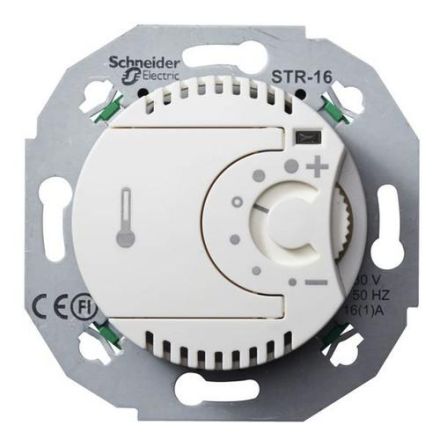

ELSO WDE011622 Temperature controller with central plate white Renova

In stock

SKU: 433778

Price on request

€131.15

€0

Overview

Electronic temperature controller 230 VAC 10%, 50 Hz, 16 A (3600W / cos 1), opener with ON/OFF switch, use when using control valves - normally closed - with LED for status display, separate connection for time-controlled night-time reduction (4°C), use without claw fastening, temperature range: 5- 30°C, with central plate white RENOVA

Property	Value
Color:	light white
Version:	On/Off
Mounting type:	Flush-mounted
Protection class (IP) :	IP20
Height:	83 mm
Width:	83 mm
Depth:	55 mm
Type of power supply:	230 V AC
Connection:	three-wire
With receiver:	no
Measuring range lower value:	5 °C
Measuring range upper value:	30 °C
Sensor external:	yes
Thermal feedback:	without
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Cooling:	no
Difference value:	1 K
Difference adjustable:	no
Temperature readable:	no
With noise level display:	no
Sensor design:	Resistance sensor
With display:	no
Operation:	Rotary
With drinking water circuit:	no
Contact type:	Opener
Max. Contact voltage:	230 V
Max. contact load:	16 A
Protection class (NEMA) :	1
Explosion-proof:	no
Diameter:	57 mm
Class of temperature controller:	I
