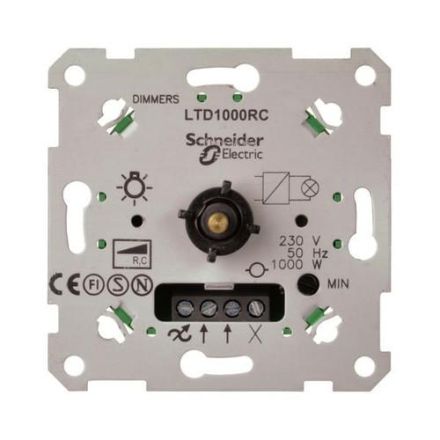

ELSO 174220 40 - 1000W/VA Trailing edge phase dimmer

In stock

SKU: 432982

Price on request

€135.48

€0

Overview

Transistor dimmer insert 40 to 1000 W/VA flat design with push-off changeover switch, for light bulbs and electronic transformers, 230V AC, 50Hz, with reversible short-circuit and thermal protection, noiseless operation

Property	Value
Dimming leading edge:	no
Dimming trailing edge:	yes
Mounting type:	Flush-mounted
Color:	gray
Suitable for protection class (IP) :	IP20
Operating mode:	Rotary/push button
Halogen-free:	yes
Composition:	Basic element
Load type:	capacitive load
Series dimmer:	no
Extension input:	no
Light value memory:	no
Can be used with button:	no
Can be used with motion detector:	no
Can be used with presence detector:	no
Can be used with timer:	no
Can be used with radio button:	no
Can be used with IR button:	no
Mounting type:	Mounting with screw
Material:	other
Material quality:	other
Surface:	untreated
Frequency:	50 Hz
Device width:	71 mm
Device height:	71 mm
Device depth:	32 mm
Rated power:	1000 VA
Rated voltage:	230 V
Transparent:	no
App control via Bluetooth:	no
Connection type:	Screw terminal
Wire cross section:	1.5 mm
Min. depth of the device box:	46 mm
