ELSO 224114 Frame 1gang FASHION Thermo pure white

In stock

SKU: 432778

Price on request

€3.97

€0

Overview

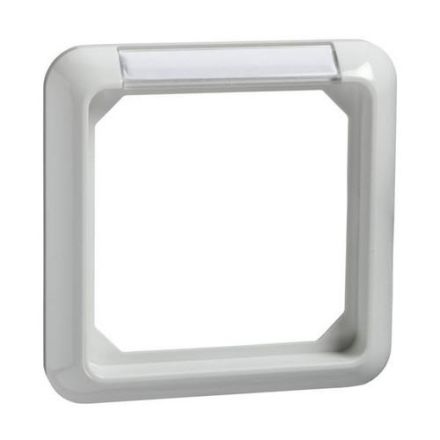

1-way frame with label field, color: pure white, Due to the frame width of 83.5 mm, ELSO FASHION is break-proof and particularly suitable for installation in ducts with 80 mm cut-outs.

Property	Value
Mounting direction:	horizontal and vertical
Number of units:	1
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	yes
Height:	83.5 mm
Width:	83.5 mm
Suitable for flush-mounted installation:	yes
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
RAL number (similar):	9010
Surface finish:	glossy
Number of units horizontal:	1
Number of units vertical:	1
Fastening type:	clamp fastening
Diameter of bore (opening):	65 mm
Transparent:	no
Number of switch inserts:	1
With mounting frame:	no
