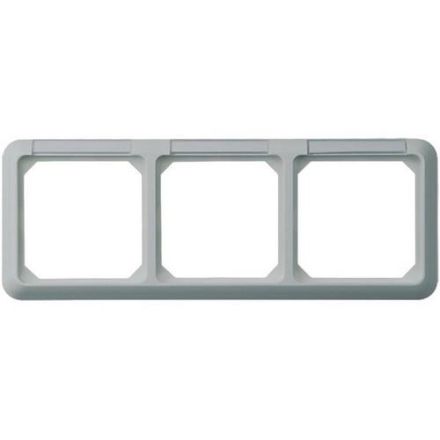

ELSO 224311 frame 3-way FASHION Thermo grey

In stock

SKU: 434485

Price on request

€16.32

€0

Overview

3-way frame with label field, color: gray, suitable for vertical and horizontal installation, thanks to the frame width of 83.5 mm, ELSO FASHION is break-proof and particularly suitable for installation in ducts with an 80 mm cut-out.

Property	Value
Installation direction:	horizontal
Number of units:	3
Color:	gray
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	yes
Height:	83.5 mm
Width:	225.5 mm
Suitable for flush-mounted installation:	yes
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
RAL number (similar):	7035
Surface finish:	glossy
Number of units horizontal:	3
Number of units vertical:	1
Mounting type:	Clamp fastening
Diameter of bore (opening):	65 mm
Transparent:	no
Number of switch inserts:	3
With mounting frame:	no
