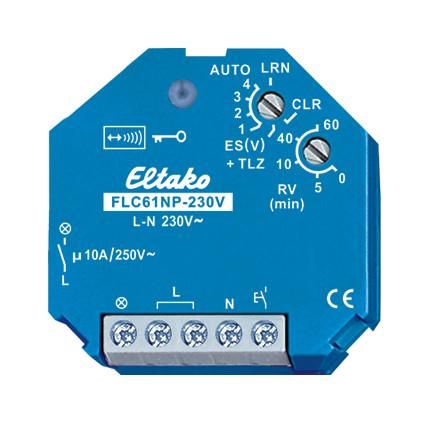

Eltako 30100040 wireless actuator FLC61NP-230V light controller

1 normally open contact, not potential-free, 10A/250V AC, 2000 watt incandescent lamps, 5 operating modes selectable. Encrypted radio, bidirectional radio and repeater function can be switched on. Standby loss only 0.8 watts. For built-in installation. 45mm long, 45mm wide, 33mm deep. Local supply, switching and control voltage 230V. If the supply voltage fails, the switching state is retained. When the supply voltage returns, it is switched off in a defined manner. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button that may be mounted in front of it. A glow lamp current is not permitted. From production week 35/16, an operating mode button can be taught in. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Every change of status and incoming central control telegrams are then confirmed with a radio telegram. This radio telegram can be taught into other actuators, the GFVS software and universal displays. With the upper rotary switch in the LRN position, up to 35 radio buttons can be assigned, including one or more central control buttons. In addition, radio motion and brightness sensors. The desired operating mode is then selected: ES (V) +TLZ: In this operating mode, the normal impulse switch function with buttons is active. A release delay for the ESV function can be set between 0 and 60 minutes with the lower rotary switch RV. The system is switched on and off using universal buttons and direction buttons. With the Central On button and a set release delay on the RV rotary switch, the staircase light timer function TLZ results. AUTO1: In AUTO1 mode (semi-automatic movement: only switching off based on motion) the light is switched on and off using universal buttons, direction buttons or central control buttons. With one or more radio motion sensors, the light is switched off if there is no movement after the release delay set on the lower rotary switch RV between 0 and 60 minutes has elapsed. AUTO2: In AUTO2 mode (semi-automatic movement and brightness: only switching off based on motion and brightness) the light is switched on and off using universal buttons, direction buttons or central control buttons. With one or more radio motion/brightness sensors, the light is switched off if there is no movement or if there is sufficient brightness after the release delay set on the lower rotary switch RV between 0 and 60 minutes has elapsed. AUTO3: In AUTO3 mode (fully automatic movement: switching on and off controlled by motion), the light is switched on using one or more radio motion-brightness sensors when the brightness falls below the threshold, and switched off when there is no movement after the release delay set on the lower rotary switch RV between 0 and 60 minutes has elapsed. The light can also be switched on and off using universal buttons, direction buttons or central control buttons. AUTO4: In AUTO4 mode (fully automatic movement and brightness: switching on and off controlled by motion and brightness), the light is switched on using one or more radio motion-brightness sensors when the brightness falls below the threshold, and switched off when there is no movement or there is sufficient brightness after the release delay set on the lower rotary switch RV between 0 and 60 minutes has elapsed. The light can also be switched on and off using universal buttons, direction buttons or central control buttons. If an operating mode button is taught in, the 4 buttons are assigned the following functions: Top left AUTO, function according to rotary switch position. Top right ON with priority. Bottom left and right OFF with priority. The selection of the AUTO operating mode is signaled by the lamp briefly switching on and off. When lighting with fluorescent lamps, energy-saving lamps and LED lamps, an underfloor heating system in the room is sufficient to measure the brightness. When lighting with incandescent and halogen lamps, an outside brightness sensor must be taught in as the master for the AUTO2 and AUTO4 operating modes. If several sensors have been taught in, the device will only be switched off when all sensors report no movement or sufficient brightness. The LED accompanies the learning process in accordance with the operating instructions and indicates radio control commands during operation by flashing briefly.
