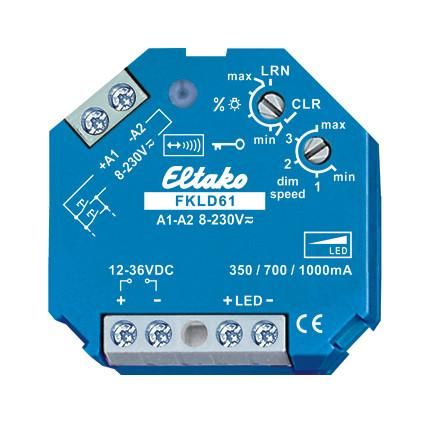

Eltako 30100836 wireless actuator LED dimmer switch FKLD61 constant current LED 300/700/1000mA

In stock
SKU: 187777
€85.58
Into a basketIn the basketGo

Overview

DC constant current source for LEDs up to 1000mA or 30 watts. Standby loss only 0.3 watts. Minimum brightness and dimming speed adjustable. With children's room and snooze function. Also with light scene control via PC or with radio buttons. Encrypted radio, bidirectional radio and repeater function can be switched on. For built-in installation. 45mm long, 45mm wide, 33mm deep. The nominal output current can be set with a jumper on the circuit board: no connection: 350mA, right-aligned (pins 2-3 connected): 700mA, left-aligned (pins 1-2 connected): 1000mA. Factory setting 700mA. The input voltage range is from 12V DC to a maximum of 36V DC. The input voltage must be selected above the sum of the LED voltage at the output so that the current control can work. This control difference must be at least 6 volts. The total output current x output voltage must not exceed 30 watts. A pulse-proof DC power supply is required which supplies the required voltage and current of the LED lamp(s). Universal control voltage 8..230V UC, galvanically isolated from the supply and switching voltage. The set brightness level is saved when switched off (memory). In the event of a power failure, the switching position and brightness level are saved and switched on when the supply voltage returns. Automatic electronic overload protection and overtemperature shutdown. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. The minimum brightness (fully dimmed) can be set using the upper % lamp rotary switch. Up to 35 radio buttons can be assigned in the LRN position, including one or more central control buttons. The dimming speed can be set using the lower dim speed rotary switch. In addition to the radio control input via an internal antenna, this dimmer switch can also be controlled locally as a universal button using a conventional universal voltage control button that may be mounted in front of it. This means that the dimming direction is changed by interrupting the control. Short control commands switch on/off. The radio buttons can be taught in either as a direction button or as a universal button: As a direction button, one side switches on and dims up, and the other side switches off and dims down. A double click on the switch-on side triggers automatic dimming up to full brightness at dim-speed. A double click on the switch-off side triggers the snooze function. The children's room switch is carried out on the switch-on side. As a universal button, the direction is reversed by briefly releasing the button. With children's room switch and snooze function. Central switch on switches on with a memory value. Central switch off switches off. Children's room switch (universal button or direction button on the switch-on side): When switching on by pressing the button for a longer period, the light is switched on at the lowest brightness after approx. 1 second and, as long as the button is still pressed, it is slowly dimmed up without changing the last saved brightness level. Snooze switch (universal button or direction button on the switch-off side): A double pulse dims the lighting from the current dimming position to the minimum brightness and then switches it off. The maximum dimming time of 60 minutes depends on the current dimming position and the set minimum brightness and can therefore be shortened accordingly. The light can be switched off at any time during the dimming process by pressing the button briefly. Light scenes via the app are created with

Property Value
Mounting type: Surface-mounted
Number of outputs: 1
Output power: 30 W
Voltage: 12 to 36 V
Frequency: 50 Hz
Design: Dim actuator
Load type: capacitive
Protection class (IP): IP20
Power supplement usable: no
KNX bus system: no
Radio bus system: yes
Powernet bus system: no
With bus connection: no
LON bus system: no
Other bus systems: without
Extension input: no
Local/manual operation: no
With LED display: no
Parallel operation possible: no
KNX radio bus system: no
Removable bus module: no
Bidirectional radio: yes
Min. Depth of the device box: 33 mm

Characteristics

Output power30 W
Voltage12 to 36 V
Number of outputs1
ManufacturerELTAKO
HAN30100836
GTIN4010312314357
Other bus systemsWithout
VersionDi mming actuator
Bus system radio busYes
KNX bus systemNo
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Frequency50Hz
Radio bidirectionalYes
Min. depth of the device box33 mm
With bus connectionNo
With LED displayNo
Mounting typeSurface-mounted
Extension inputNo
IP protection)IP20
