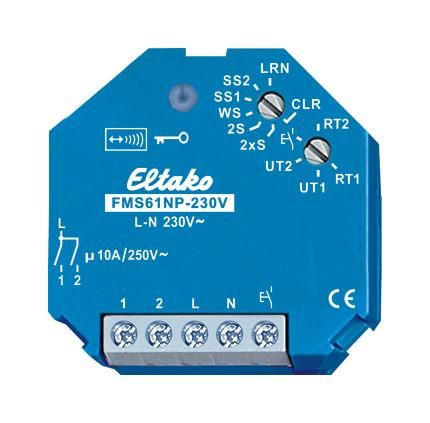

1+1 normally open contact not potential free 10A/250V AC, 230V LED lamps up to 400W, incandescent lamps 2000W. Encrypted radio, bidirectional radio and repeater function can be switched on. Standby loss only 0.8 watts. For built-in installation. 45mm long, 45mm wide, 33mm deep. Supply, switching and control voltage locally 230V. If the supply voltage fails, the switching state is retained. When the supply voltage returns, it is switched off in a defined manner. This radio actuator as a multifunctional impulse switch has the most modern hybrid technology developed by us: We have combined the wear-free reception and evaluation electronics with two bistable relays that switch at zero crossing. This means that even when switched on, there is no coil power loss and no heating as a result. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this multi-function impulse switch can also be controlled locally with a conventional 230V control button that may be mounted in front of it. In the 2xS function, only contact 1. Maximum current as a sum across both contacts 16A at 230V. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Every change of status and incoming central control telegrams are then confirmed with a radio telegram. This radio telegram can be taught in to other actuators and Professional Smart Home controllers. With the upper rotary switch in the LRN position, up to 35 radio buttons can be assigned, including one or more central control buttons. The desired function of this multi-function impulse switch is then selected. The switchover is visualized by the LED flashing. 2xS = 2-way impulse switch with 1 normally open contact each. 2S = impulse switch with 2 normally open contacts. WS = impulse switch with 1 normally open contact and 1 normally closed contact. SS1 = series switch 1 + 1 normally open contact with switching sequence 1. SS2 = series switch 1 + 1 normally open contact with switching sequence 2. Switching sequence SS1: 0 - contact 1 - contact 2 - contacts 1 + 2. Switching sequence SS2: 0 - contact 1 - contacts 1 + 2 - contact 2. The lower rotary switch is only required for programming the transmitters. Universal buttons and direction buttons can be programmed from production week 08/2013. The LED accompanies the learning process in accordance with the operating instructions and indicates radio control commands during operation by flashing briefly.
