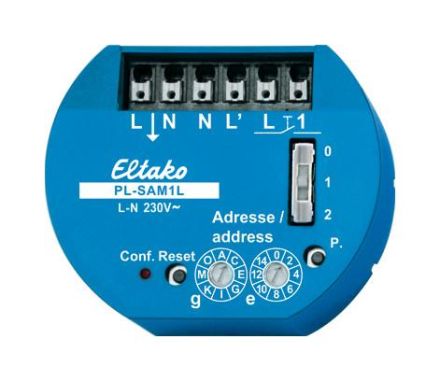

Powerline actuator 1 channel with sensor input. 53x43mm, 25mm deep, for installation in 58mm switch boxes. Can be used as a pulse switch or relay. 1 normally open contact not potential free 10A/250V AC, light bulbs 2000 watts. Sensor input 230V. Standby loss only 0.5 watts. For controlling and switching in the same place. There are two rotary switches on the front for address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address e with 16 numerical values from 0 to 15. Above this there is a slide switch as a configuration switch with positions 0, 1 and 2. Position 0: Sensor input acts as a button (pulse switch). Position 1: Sensor input acts as a normally open contact (relay). Position 2: A changeover switch is evaluated like a button. Using the SIENNA-Professional PC software, all entries and configurations can also be accessed via the power grid. This can also be used to set another configuration that is not available using the rotary switches: Position 3: Sensor input acts as an opener (relay inverse). To the left of the rotary switches there is a red LED which indicates all activities. Next to it is the reset button and to the right of it a service pin. Functions as per the operating instructions. The connection terminals at the top are plug-in terminals for conductor cross-sections from 0.2mm² to 1.5mm².
