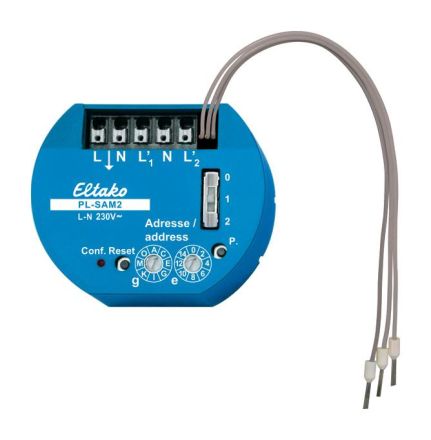

Powerline blind actuator for 1 motor. 53x43mm, 25mm deep, for installation in 58mm switch boxes. 1+1 normally open contact for motors up to 3A. 2 sensor inputs with internal low voltage. Standby loss only 0.5 watts. For controlling and switching in the same place. Only use potential-free switching elements. Internal low voltage at the sensor inputs. The control inputs can be used for a blind button or a blind switch. The running time is preset to 120 seconds and can be changed using the SIENNA-Professional PC software. There are two rotary switches on the front for address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address e with 16 numerical values from 0 to 15. Above this there is a slide switch as a configuration switch with positions 0, 1 and 2. Position 0: Start and stop with blind button. Auto-stop at the end. Position 1: Comfort switch for adjusting slats on blinds. Short press for slat adjustment. >1 second as in position 0. Position 2: Inching mode with button, stops when released. Auto-stop at the end. To the left of the rotary switches there is a red LED which shows all activities. Next to it is the reset button and to the right of it a service pin. Functions as per the operating instructions. The connection terminals at the top are plug-in terminals for conductor cross-sections from 0.2mm² to 1.5mm². Next to it are three strands with wire end ferrules for the two control inputs with internal low voltage.
