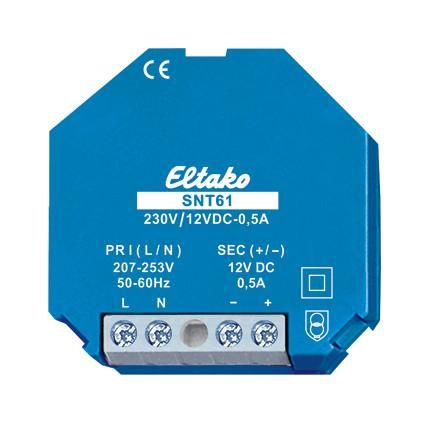

Switching power supply 230V/12V DC-0.5A. Nominal power 6W. Standby loss only 0.1 watt. For built-in installation. 45mm long, 45mm wide, 33mm deep. Input voltage 230V (-20% to +10%). Efficiency 81%. Stabilized output voltage plus or minus 1%, low residual ripple. Short-circuit proof. Overload and overtemperature protection by switching off with automatic switching on after the error has been eliminated (autorecovery function).
Attention! Discontinued item only available in limited quantities.
| Property | Value |
| 1. Output voltage: | 12 V |
| Supply voltage type: | AC |
| Max. Output current 1: | 1 A |
| Output voltage adjustable: | no |
| Rated supply voltage at AC 50 Hz: | 230 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Design of the electrical connection: | screw connection |
| Output voltage regulated: | yes |
| Power output: | 6 W |
| Suitable for series installation: | no |
| Rail mounting possible: | no |
| Wall mounting possible: | yes |
| Protection class (IP): | IP20 |
| Width: | 45 mm |
| Height: | 45 mm |
| Depth: | 33 mm |
| Nominal value of output voltage 1: | 12 V |
| Nominal value of output current 1: | 1 A |
| Installation width: | 45 mm |
