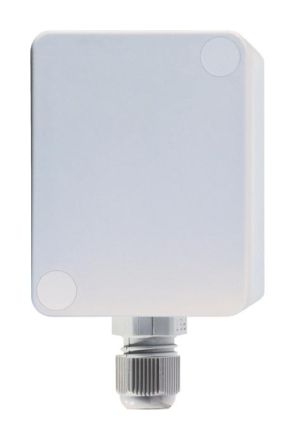

Outdoor radio repeater 1 and 2 levels, 60x46mm, 30mm deep. Standby loss only 0.7 watts. Supply voltage 230V. This repeater is only required if the structural conditions prevent uninterrupted reception or the distance between the radio button and receiver is too great. The 1-level mode is activated as a factory setting. Only the signals from sensors and actuators are received, checked and transmitted with full transmission power. Radio signals from other repeaters are ignored in order to reduce the amount of data. By removing the cover (to do this, loosen the two screws on the front) and repositioning the jumper to the right, you switch to 2-level mode. The radio signals from another 1-level repeater are now also processed. A signal can thus be received and amplified a maximum of 2 times. A red LED indicates all detected radio signals by flashing briefly. Radio repeaters do not need to be taught in. They receive and amplify the signals from all radio sensors in their reception area. There is an M12 screw connection on the underside for the waterproof power connection. The protection class is IP54, the permissible ambient temperature is -20°C to +55°C. Installation by screwing.
