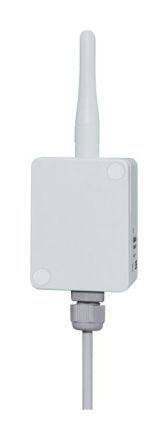

Radio transmitter module with battery and antenna rod. LxWxH: 60x46x30mm (dimensions without antenna and screw connection). This radio transmitter module can be operated by a FWS60 water sensor or by a button and sends various adjustable radio telegrams to the Eltako building radio. An internal jumper can be used to choose between 4 operating modes. In operating mode 1 (jumper plugged into position JP1), radio telegrams such as pressing the double rocker at the bottom left of a radio button are sent. In operating mode 2 (jumper plugged into position 2), radio telegrams such as pressing the double rocker at the top right and bottom right of a radio button are sent. In operating mode 3 (jumper plugged into position 3, factory setting), radio telegrams are sent in accordance with the EnOcean standard EEP A5-30-03. In operating mode 4 (jumper plugged into position 4), radio telegrams are sent in accordance with the EnOcean standard EEP A5-30-01. In operating modes 3 and 4, a status telegram is also sent every 33 minutes. An internal 3V button cell CR2032 provides power for several years; in operating mode 4, the battery charge status is sent in every data and status telegram. To teach in an actuator that is ready to learn, press the internal LRN button. To remove the cover, loosen the two screws on the front and make sure the seal is in the correct position when closing it. There is an M12 screw connection on the underside for the cable connection. Multiple radio transmitter modules must not be controlled at the same time.
