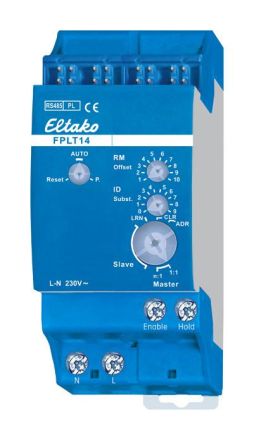

Wireless powerline tunnel gateway. Unidirectional and bidirectional. Standby loss only 0.4 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 2 division units = 36mm wide, 58mm deep. Supply voltage: 230V. Connection to the Eltako RS485 bus. Cross-wiring of bus and power supply with jumper. This gateway transmits RS485 bus telegrams with powerline over long distances via the power grid. At least 2 FPLT14s are required for this. Up to 10 FPLT14s can send the bus telegrams of their FAM14/FTS14KS installation with powerline unidirectionally via the power grid to another FAM14/FTS14KS installation via an FPLT14 there. Teach in up to 120 telegram IDs according to the operating instructions, also with PCT14. Two FPLT14s can exchange the bus telegrams from two FAM14/FTS14KS installations with Powerline bidirectionally via the power grid. Up to 120 telegram IDs can be taught in as per the operating instructions, also with PCT14. Due to the transmission delay, short-click evaluations for FUD and FSB actuators are not reliably possible.
