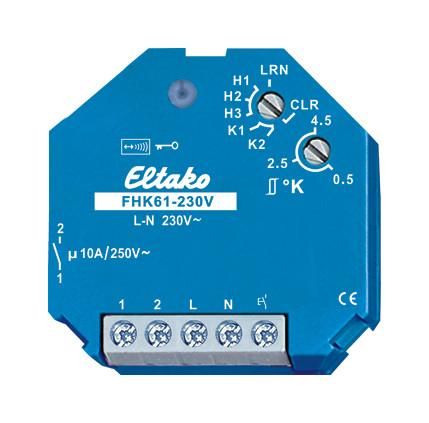

Wireless actuator heating-cooling relay 230V. 1 normally open contact, potential-free 10A/250V AC. Standby loss only 0.8 watts. Encrypted radio, bidirectional radio and repeater function can be switched on. For built-in installation. 45mm long, 45mm wide, 33mm deep. If the supply voltage fails, the switching state is retained. When the supply voltage returns, it is switched off in a defined manner. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. This heating-cooling relay evaluates the information from wireless temperature controllers or sensors. Possibly supplemented by window-door contacts, motion detectors, window handle sensor FFG7B-rw and wireless buttons. Valves are controlled with the potential-free working contact. Encrypted sensors can be taught in from production week 11/14. Bidirectional radio and/or a repeater function can be switched on. Every function change (normal operation, reduced operation, off) is confirmed with a radio telegram. This radio telegram can be taught into the GFVS software. Upper rotary switch for the operating modes. The LED accompanies the learning process in accordance with the operating instructions and indicates radio control commands during operation by flashing briefly.
