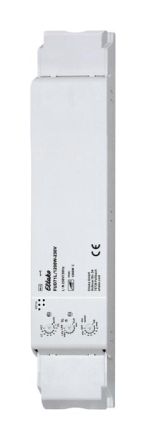

Eltako 30100846 wireless dimmer actuator FUD71L/1200W-230V universal 1200Watt

In stock
SKU: 187968
€125.88
Into a basketIn the basketGo

Overview

Universal dimmer switch, Power MOSFET up to 1200W. Automatic lamp detection. Minimum brightness and dimming speed adjustable. With children's room, snooze and light alarm switch as well as constant light control and master-slave operation. Also with light scene control via PC or with radio buttons. Encrypted radio, bidirectional radio and repeater function can be switched on. Standby loss only 0.7 watts. Installation in the 230V mains connection cable, for example in false ceilings and lights. 252mm long, 46mm wide and 31mm high. With cable strain relief. Universal dimmer switch for lamps up to 1200W, depending on the ventilation conditions and the type of dimming. Dimmable energy saving lamps ESL and dimmable 230V LED lamps also dependent on the lamp electronics. Zero-crossing switching with soft on and soft off to protect the lamp. The set brightness level is saved when the device is switched off (memory). In the event of a power failure, the switch position and brightness level are saved and, if necessary, switched on when the supply voltage is restored. Automatic electronic overload protection and overtemperature shutdown. During operation, the upper rotary switch determines whether automatic lamp detection or special comfort positions should be used. The LED accompanies the learning process in accordance with the operating instructions and indicates control commands during operation by flashing briefly.

Property Value
Mounting type: other
Radio frequency: 868 MHz
Color: white
Material: plastic
Halogen-free: yes
Surface: other
Mounting type: other
Material quality: Thermoplastic
Surface finish: matt
Suitable for protection class (IP): IP20
Suitable for dimmer: yes
Suitable for pulse pushers: no
Suitable for roller shutter switches: no
Suitable for switches: no
Rolling code system: yes
In the housing: yes
In the tube socket housing: no
As a module/circuit board: no
Touch operation: yes
Switching operation: no
With radio hand transmitter: no
With radio coding device: no
With Radio button: no
Suitable for blind switches: no
Suitable for blind/roller shutter switches: no
Transparent: no

Characteristics

Suitable for dimmersYes
ManufacturerELTAKO
HAN30100846
GTIN4010312316412
Surface finishFrosted
Mounting typeOther
ColorWhite
Suitable for protection class (IP)IP20
Halogen freeYes
Mounting typeOther
SurfaceOther
TransparentNo
MaterialPlastic
Material qualityThermoplastic
