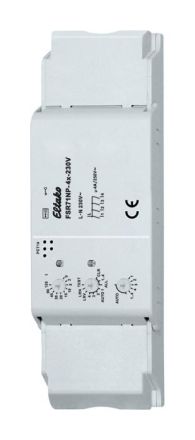

Lasting relay with 4 channels, 1 normally open contact each, not potential-free 4A/250V AC. 230V LED lamps up to 200W, incandescent lamps 1000W. With light scene control via PC or with radio buttons. Encrypted radio, bidirectional radio and repeater function can be switched on. Standby loss only 0.8 watts. Installation in the 230V mains connection cable, for example in false ceilings and lights. 166mm long, 46mm wide and 31mm high. With cable strain relief. If the supply voltage fails, the device is switched off in a defined manner. The channels can be taught in independently of one another as ES or ER channels. Scene control: With one of the four control signals of a button with double rocker that has been taught in as a scene button, several channels of one or more FSR71NP-4x can be switched on or off for one scene each. Central commands on the PC are sent using the GFVS building radio visualization and control software. To do this, teach in one or more FSR71NP-4x on the PC. The buttons are taught in using the rotary switches and the 4 channels are tested if necessary. For normal operation, the middle and lower rotary switches are then set to AUTO. The upper rotary switch can be used to set the EW time (0-120 seconds) for relays or the RV time (0-120 minutes) for impulse switches for all channels. If radio motion brightness sensors FBH (master) and/or FBH (slave) are taught in, the upper rotary switch is used to set the switching threshold at which the lighting switches on or off separately for each channel. Settings for the upper rotary switch as per the operating instructions. If wireless brightness sensors are taught in, the upper rotary switch is used to set the switching threshold for each channel separately, at which the lighting switches on or off depending on the brightness (from approx. 0 lux in position 0 to approx. 50 lux in position 120). A hysteresis of approx. 300 lux between switching on and off is fixed. An additional RV time is ignored. Only one FBH or FAH can be taught in per channel. However, one FBH or FAH can be taught in several channels. If wireless window-door contacts FTK or window handle sensors FFG7B-rw are taught in, different functions can be set with the middle rotary switch in the positions AUTO 1 to AUTO 4 and a maximum of 116 FTKs can be linked. The LED under the upper rotary switch accompanies the learning process in accordance with the operating instructions and indicates control commands during operation by flashing briefly.
