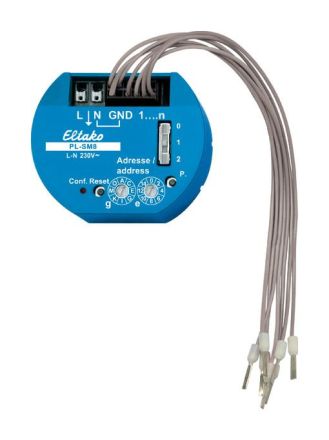

PPowerline sensor input with 8 channels. 53x43mm, 25mm deep, for installation in 58mm switch boxes. 8 sensor inputs with internal low voltage. Standby loss only 0.5 watts. For controlling and switching at different locations. Only use potential-free switching elements. Internal low voltage at the sensor inputs. There are two rotary switches on the front for address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address e with 16 numerical values from 0 to 15. Above this there is a slide switch as a configuration switch. Position 0: 2 adjacent inputs each as direction buttons for UP/DOWN or ON/OFF. Position 1: All sensor inputs work individually as normally open contacts. Position 2: All sensor inputs work individually as buttons. This setting always affects all 8 inputs. The setting can only be changed after a reset. To the left of the rotary switches there is a red LED which shows all activities. Next to it is the reset button and to the right of it a service pin. Functions as per the operating instructions. The connection terminals at the top are plug-in terminals for conductor cross-sections from 0.2mm² to 1.5mm². The addresses of the 8 inputs can also be freely assigned using the SIENNA-Professional PC software if necessary. The socket strip at the top with 9 wires with wire end ferrules is plugged in. 8 control inputs with internal low voltage.
