Cable gland Kaiser

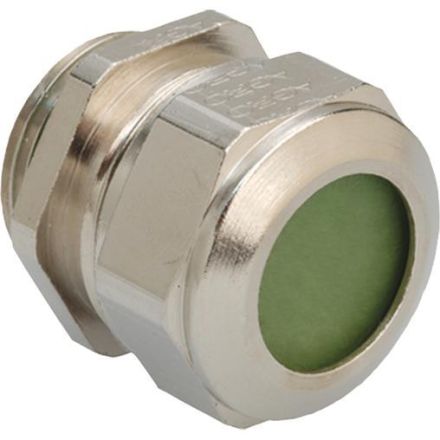

Kaiser 1000.21.32.30.91 AGRO cable gland PG21, 1000.21.32.30.91

Kaiser 1000.21.32.30.91 AGRO cable gland PG21, 1000.21.32.30.91

In stock

SKU: 495899

Price on request

€48.52

€0

Into a basketIn the basketGo

Overview

Cable gland Progress Ms HT Pg21 sealing insert M32 FPM without bore for high temperatures

Property	Value
Wrench size:	36 mm
Nominal thread size metric/PG:	21
Suitable for cable diameters:	23.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 200 °C
Halogen-free:	no
Thread length:	7.5 mm
Thread type:	PG
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG21

Fiberglass reinforcedNo

Suitable for cable diameter23.0 mm

Wrench size36 mm

HAB1000.21.32.30.91

Manufacturer

HAN1000.21.32.30.91

GTIN7611614131917

VersionStraight

Operating temperature-40 to 200 °C

Thread typePG

Thread length7.5 mm

Halogen freeNo

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass
