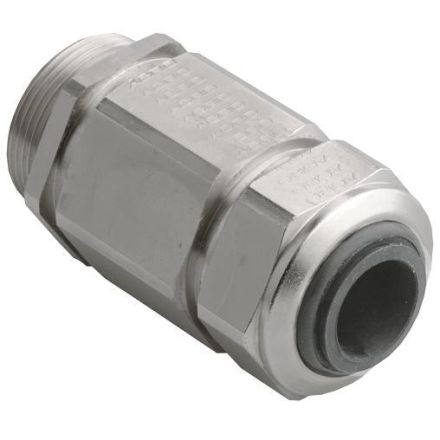

Kaiser EMV Series 85 brass 33-42mm AGRO cable gland M50, 1000.50.85.380

In stock

SKU: 495989

Price on request

€145.12

€0

Overview

Operating temperature: -40°C / +100°C, clamping technology: compression technology, technical features: for high leakage currents, contacting: collet chuck

Property	Value
Wrench size:	55 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	50
Suitable for cable diameters:	33.0 to 42.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	13 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable Screw connection:	no
