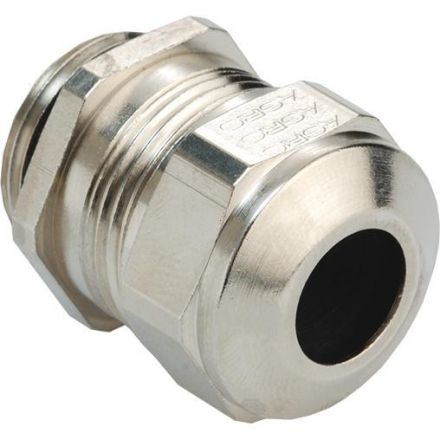

Kaiser PROGRESS EMV M40 clamping range 28.5-32mm AGRO EMC cable gland, 1080.40.320

Kaiser PROGRESS EMV M40 clamping range 28.5-32mm AGRO EMC cable gland, 1080.40.320

In stock

SKU: 495750

Price on request

€57.60

€0

Into a basketIn the basketGo

Overview

Operating temperature: -40°C / +100°C, thread length: short, clamping technology: compression technology, contacting: contact sleeve

Property	Value
Wrench size:	46 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	40
Suitable for cable diameters:	28.5 to 32.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable Screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG40

Fiberglass reinforcedNo

Suitable for cable diameter28.5 to 32.0mm

Wrench size46 mm

HABPROGRESS EMV M40 clamping range 28.5-32mm

Minimal order10 pcs

Manufacturer

HAN1080.40.320

GTIN7611614119533

VersionStraight

Operating temperature-40 to 100 °C

Thread typeMetric

Thread length8 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass

Kaiser PROGRESS EMV M40 clamping range 28.5-32mm AGRO EMC cable gland, 1080.40.320

Kaiser PROGRESS EMV M40 clamping range 28.5-32mm AGRO EMC cable gland, 1080.40.320

Price on request

€57.60

€0

Into a basketIn the basketGo
