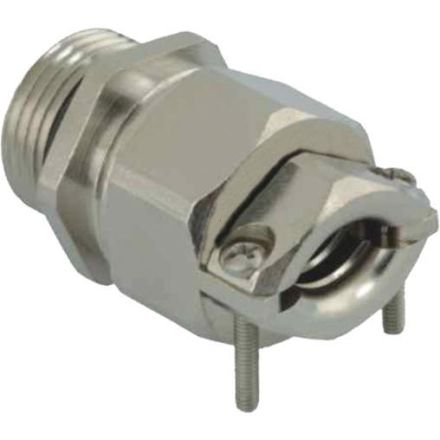

Kaiser PROGRESS MS KB M32 clamping range 17-25.5m AGRO brass cable gland, 1800.32.03.255

Kaiser PROGRESS MS KB M32 clamping range 17-25.5m AGRO brass cable gland, 1800.32.03.255

In stock

SKU: 495456

Price on request

€35.63

€0

Into a basketIn the basketGo

Overview

Operating temperature: -40°C / +100°C, Thread length: Short, Clamping technology: Compression technology, Technical features: With clamping jaws

Property	Value
Wrench size:	36 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	32
Suitable for cable diameters:	17.0 to 25.5 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable Screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG32

Fiberglass reinforcedNo

Suitable for cable diameter17.0 to 25.5mm

Wrench size36 mm

HABPROGRESS MS KB M32 clamping range 17-25.5m

Minimal order25 pcs

Manufacturer

HAN1800.32.03.255

GTIN7611614127644

VersionStraight

Operating temperature-40 to 100 °C

Thread typeMetric

Thread length8 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass

Kaiser PROGRESS MS KB M32 clamping range 17-25.5m AGRO brass cable gland, 1800.32.03.255

Kaiser PROGRESS MS KB M32 clamping range 17-25.5m AGRO brass cable gland, 1800.32.03.255

Price on request

€35.63

€0

Into a basketIn the basketGo
