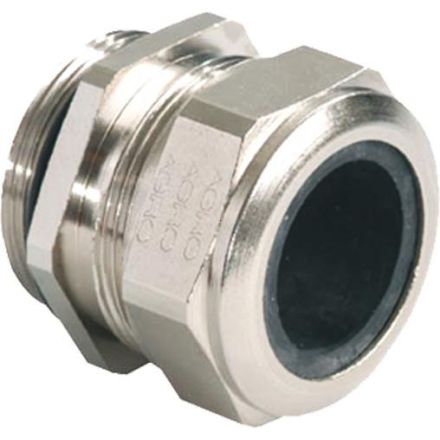

Kaiser Progress MS brass 4.5-6mm AGRO cable gland M16, 1060.17.060

Kaiser Progress MS brass 4.5-6mm AGRO cable gland M16, 1060.17.060

In stock

SKU: 495605

Price on request

€4.23

€0

Into a basketIn the basketGo

Overview

Cable gland Progress Ms M16x1.5 cable 4.5-6.0 mm (UL 6.0-6.0 mm) thread fully insulated

Property	Value
Wrench size:	18 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	16
Suitable for cable diameters:	4.5 to 6.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	5 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable Screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG16

Fiberglass reinforcedNo

Suitable for cable diameter4.5 to 6.0mm

Wrench size18 mm

HABProgress MS Brass 4.5-6mm

Manufacturer

HAN1060.17.060

GTIN7611614105215

VersionStraight

Operating temperature-40 to 100 °C

Thread typeMetric

Thread length5 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass
