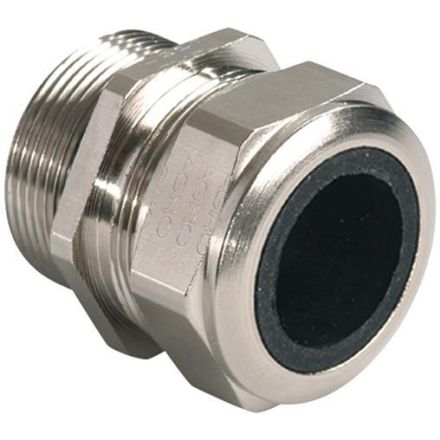

Kaiser Progress MS brass 45-50mm AGRO cable gland M75, 1100.75.500

Kaiser Progress MS brass 45-50mm AGRO cable gland M75, 1100.75.500

In stock

SKU: 496378

Price on request

€210.34

€0

Into a basketIn the basketGo

Overview

Cable gland Progress Ms M75x1.5 cable 45.0-50.0 mm (UL 45.0-50.0 mm) long connection thread

Property	Value
Wrench size:	80 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	75
Suitable for cable diameters:	45.0 to 50.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	15 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG75

Fiberglass reinforcedNo

Suitable for cable diameter45.0 to 50.0mm

Wrench size80 mm

HABProgress MS Brass 45-50mm

Manufacturer

HAN1100.75.500

GTIN7611614104966

VersionStraight

Operating temperature-40 to 100 °C

Thread typeMetric

Thread length15 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass

Kaiser Progress MS brass 45-50mm AGRO cable gland M75, 1100.75.500

Kaiser Progress MS brass 45-50mm AGRO cable gland M75, 1100.75.500

Price on request

€210.34

€0

Into a basketIn the basketGo
