Cable gland Kaiser

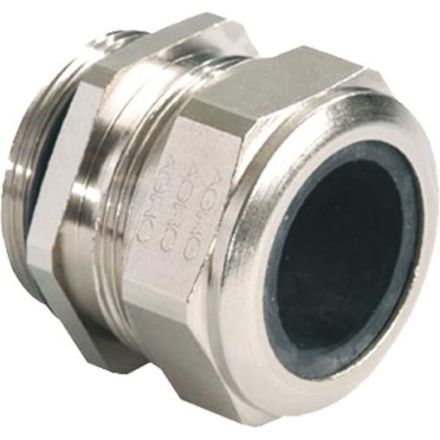

Kaiser Progress MS brass 8-14.5mm AGRO cable gland M20, 1060.20

Kaiser Progress MS brass 8-14.5mm AGRO cable gland M20, 1060.20

In stock

SKU: 496109

Price on request

€5.61

€0

Into a basketIn the basketGo

Overview

Cable gland Progress Ms M20x1.5 cable 8.0-14.5 mm (UL 10.6-11.0 mm) thread fully insulated

Property	Value
Wrench size:	24 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	20
Suitable for cable diameters:	8.0 to 14.5 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	6 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG20

Fiberglass reinforcedNo

Suitable for cable diameter8.0 to 14.5mm

Wrench size24 mm

HABProgress MS Brass 8-14.5mm

Manufacturer

HAN1060.20

GTIN7611614105413

VersionStraight

Operating temperature-40 to 100 °C

Thread typeMetric

Thread length6 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass
