Kaiser Series 18 MS brass 11-13mm AGRO cable gland PG16, 1816.26

Kaiser Series 18 MS brass 11-13mm AGRO cable gland PG16, 1816.26

In stock

SKU: 496804

Price on request

€61.27

€0

Into a basketIn the basketGo

Overview

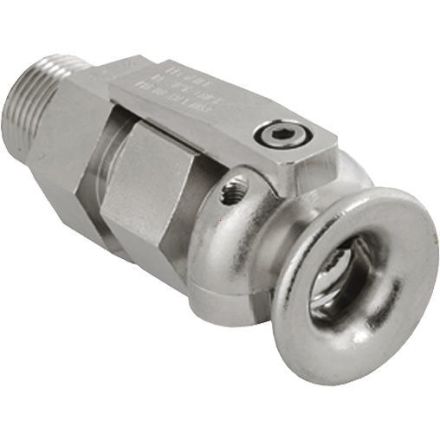

Cable gland series 18 Ms Pg16 Ex d IIC cable 11.0-13.0 mm with trumpet and clamping jaws

Property	Value
Wrench size:	26 mm
Nominal thread size metric/PG:	16
Suitable for cable diameters:	11.0 to 13.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	14 mm
Thread type:	PG
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable screw connection:	no
Dividable screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG16

Fiberglass reinforcedNo

Suitable for cable diameter11.0 to 13.0mm

Wrench size26 mm

HABSeries 18 MS Brass 11-13mm

Manufacturer

HAN1816.26

GTIN7611614042978

VersionStraight

Operating temperature-40 to 100 °C

Thread typePG

Thread length14 mm

Halogen freeYes

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass
