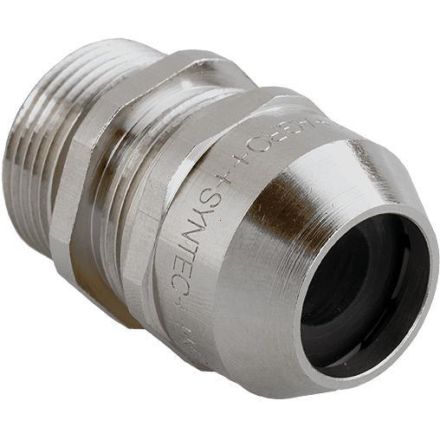

Kaiser Syntec MS lamella brass 22-29mm AGRO cable gland M50, 1145.50.290

Kaiser Syntec MS lamella brass 22-29mm AGRO cable gland M50, 1145.50.290

In stock

SKU: 496390

Price on request

€44.37

€0

Into a basketIn the basketGo

Overview

Cable gland Syntec Ms M50x1.5 cable 20.0-29.0 mm (UL 23.0-29.0 mm) long connection thread

Property	Value
Wrench size:	55 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	50
Suitable for cable diameters:	20.0 to 29.0 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	15 mm
Thread type:	metric
Design:	straight
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	Sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable screw connection:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG50

Fiberglass reinforcedNo

Suitable for cable diameter20.0 to 29.0mm

Wrench size55 mm

HABSyntec MS slat brass 22-29mm

Manufacturer

HAN1145.50.290

GTIN7611614230245

VersionStraight

Operating temperature-40 to 100 °C

Thread typeMetric

Thread length15 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass
