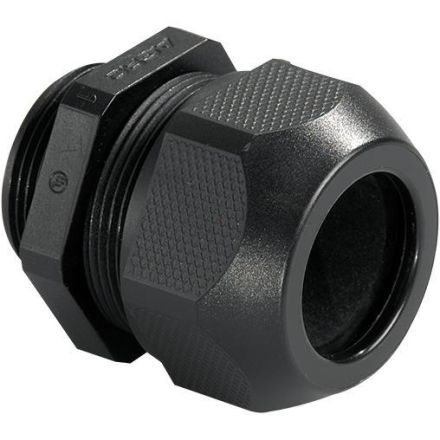

Kaiser SYNTEC PA6 black 17.0-25.0mm AGRO cable gland M32x1.5, 1545.32.25

Kaiser SYNTEC PA6 black 17.0-25.0mm AGRO cable gland M32x1.5, 1545.32.25

In stock

SKU: 495762

Price on request

€1.02

€0

Into a basketIn the basketGo

Overview

Cable gland Syntec Kst. M32x1.5 cable 17.0-25.0mm (UL 19.5-23.0mm) black RAL 9005

Property	Value
Wrench size:	42 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	32
Suitable for cable diameters:	17.0 to 25.0 mm
Protection class (IP):	IP68
Operating temperature:	-30 to 100 °C
Halogen-free:	yes
Thread length:	10 mm
Thread type:	metric
Design:	straight
Color:	black
Material:	plastic
With strain relief:	yes
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	9005
Material quality:	Polyamide (PA)
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no

Characteristics

Impact resistantYes

Nominal thread size metric/PG32

Fiberglass reinforcedNo

Suitable for cable diameter17.0 to 25.0mm

Wrench size42 mm

HABSYNTEC PA6 black 17.0-25.0mm

Manufacturer

HAN1545.32.25

GTIN7611614078366

VersionStraight

Operating temperature-30 to 100 °C

Color

Thread typeMetric

Thread length10 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

RAL number9005

IP protection)IP68

MaterialPlastic

Material qualityPolyamide (PA)

Kaiser SYNTEC PA6 black 17.0-25.0mm AGRO cable gland M32x1.5, 1545.32.25

Kaiser SYNTEC PA6 black 17.0-25.0mm AGRO cable gland M32x1.5, 1545.32.25

Price on request

€1.02

€0

Into a basketIn the basketGo
