Kaiser 1055-04 switch box, flush-mounted, 40.5 mm deep, pack of 25.

In stock

SKU: 0187481

Price on request

€0.15

€0

Overview

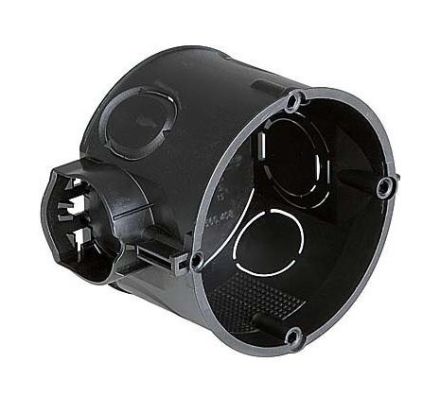

Kaiser 1055-04 switch box, flush-mounted, 40.5 mm deep

Device box without device screws, with 4 screw domes and 2 expansion claw fields, pipe entries with break-out openings for cables and DIN EN pipes 20/25 mm (2 x M20/M25 in both nozzles, 2 x M20 and 2 x M25 in the side wall, 1 x M20 in the box base)

Property	Value
With screws:	no
Depth:	46 mm
Material:	Plastic
Color:	black
Sealable:	no
Halogen-free:	yes
Protection class ( IP):	IP2X
Shape:	round
Diameter:	60 mm
Mounting type:	Flush-mounted
Version:	Single
Design:	Device box
With nail tabs:	no
Windproof:	no
Insertion from the rear:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	no
Functional integrity:	without
Fastening of the devices:	screws
For pipe diameter:	20/25 mm
Pipe locking:	no
Equipment:	without
Lamp hook fastening:	no
Socket:	Tunnel socket
With shielding:	no
Housing feed-through through knockout opening:	yes
With rotating ring:	no
Special application:	other
Housing feedthrough through pipe socket:	yes
Housing feedthrough through stepped membrane:	no
Tube lock optional:	no
Cover design:	without
Transparent cover:	no
