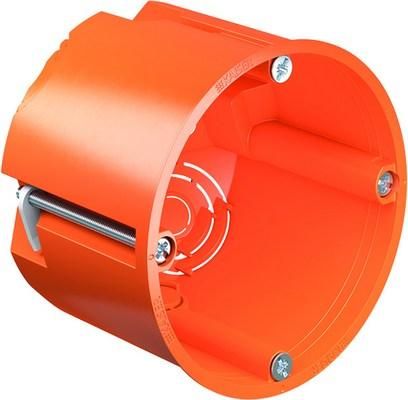

Kaiser 9064-02 , O-range D: 68mm T: 62mm orange hollow wall device junction box

In stock
SKU: 497934
€0.69
Into a basketIn the basketGo

Overview

O-range® device junction box, depth 62 mm (9064-02). The new KAISER hollow wall installation boxes with proven tab fastening technology and improved product features. A practical design and a targeted selection of cable and pipe entries enable a wide range of possible uses. Additional boxes for special applications such as installation in thinly panelled walls or walls made of solid wood round off the diverse range. Validation documents the high quality standards. Milling hole Ø: 68 mm, depth: 62 mm.

E property < td>Plastic
Value
With screws: yes
Max. Conductor cross section: 2.5 mm²
Depth: 62 mm
Material:
Color: orange
Sealable: no
Halogen-free: no
Protection rating (IP): IP3X
Shape: round
Diameter: 68 mm
Mounting type: Hollow wall
Number of entries: 12
Version: Single
Design: Device junction box/box
With Nail tabs: no
Windproof: no
Insertion from the back: yes
Can be coupled: yes
Housing feedthrough through sealing membrane: no
Cover fastening: screwed
Functional integrity: without
For number of device inserts: 1
Inner depth: 62 mm
Surface: other
Fastening of the devices: screws
Pipe locking: no
Clamp fixed in position: no
Equipment: without
Lamp hook fastening: no
Socket: Tunnel socket
With shielding: no
Housing feed-through through knockout opening: yes
Special application: without
Housing feedthrough through pipe socket: no
Housing feedthrough through stepped membrane: no
Number of grommets supplied: 7
Lid design: without
Transparent lid: no

Characteristics

HABO-range D: 68mm T: 62mm orange
ManufacturerKaiser
HAN9064-02
GTIN4013456548268
VersionSingles
Cover designWithout
DesignDevice junction box
Diameter68 mm
ColorOrange
ShapeAround
Functional preservationWithout
Halogen freeNo
Internal depth62 mm
Mounting typeCavity wall
SurfaceOther
IP protection)IP3X
Depth62 mm
MaterialPlastic
