Kaiser O-range ECON 63 airtight D: 48mm hollow wall device box, 9263-22

In stock

SKU: 497937

Price on request

€1.24

€0

Overview

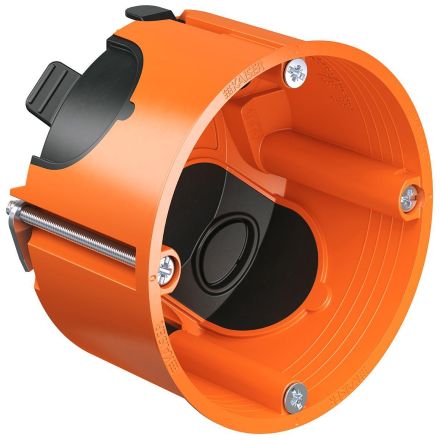

Hollow wall device box O-range ECON® 63, airtight with device screws, depth 48 mm

Property	Value
With screws:	yes
Max. Conductor cross-section:	2.5 mm²
Depth:	49 mm
Material:	Plastic
Color:	orange
Sealable:	no
Halogen-free:	no
Protection class (IP):	IP3X
Shape:	round
Diameter:	68 mm
Mounting type:	Hollow wall
Number of entries:	6
Design:	Single
Design:	Device box
With nail tabs:	no
Windproof:	yes
Entry from behind:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	yes
Cover fastening:	screwed
Functional integrity:	without
For number of device inserts:	1
Inner depth:	49 mm
Surface:	other
Fastening of the devices:	screws
Pipe locking:	no
Clamp fixed in position:	no
Equipment:	without
Light hook fastening:	no
Socket:	Tunnel socket
With shielding:	no
Housing feed-through through knockout opening:	no
Special application:	other
Housing feed-through through pipe socket:	no
Housing feedthrough through stepped membrane:	yes
Number of grommets supplied:	7
Cover design:	without
Transparent cover:	no
