Kaiser O-range ECON airtight hfr white D:65mm junction box, 9273-77

In stock

SKU: 497955

Price on request

€16.58

€0

Overview

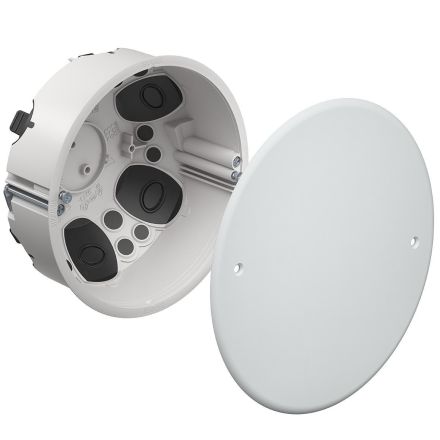

Cavity wall junction box 120 mm O-range ECON®, airtight, halogen-free with lid, depth 65 mm

Property	Value
With screws:	yes
Depth:	65 mm
Material:	Plastic
Color:	orange
Sealable:	no
Halogen-free:	yes
Protection class (IP):	IP2X
Shape:	round
Diameter:	120 mm
Mounting type:	Hollow wall
Number of entries:	22
Design:	Single
Design:	Junction box/case
With nail tabs:	no
Windproof:	yes
Suitable for cable diameters:	1.5 to 2.5 mm
Introduction from the rear:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	yes
Cover fastening:	screwed
Functional integrity:	without
Inner depth:	65 mm
Surface:	other
Fastening of the devices:	screws
For pipe diameter:	20/25 mm
Pipe locking:	no
Clamp fixed in position:	yes
Equipment:	without
Light hook fastening:	no
Socket:	without
With shielding:	no
Housing feedthrough through knockout opening:	yes
With rotating ring:	no
Special application:	other
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	Blind cover
Transparent lid:	no
