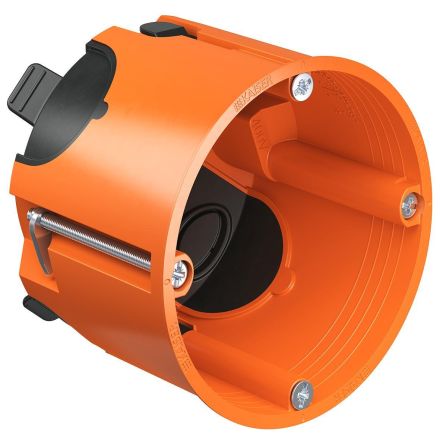

Kaiser O-range ECON airtight T:62mm hollow wall pipe junction box, 9266-22

In stock

SKU: 497946

Price on request

€2.29

€0

Overview

Hollow wall pipe device junction box O-range ECON®, airtight with device screws, depth 62 mm

Color : < tr style='background-color:#F0F0F0'>

Property	Value
With screws:	yes
Depth:	62 mm
Material:	Plastic
orange
Sealable:	no
Halogen-free:	no
Protection type (IP):	IP2X
Shape:	round
Diameter:	68 mm
Mounting type:	Hollow wall
Number of entries:	4
Version:	Single
Design:	Device junction box/box
With nail tabs:	no
Windproof:	yes
Insertion from the rear:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	yes
Cover fastening:	screwed
Functional integrity:	without
Inner depth:	62 mm
Surface:	other
Fastening of the devices:	screws
For pipe diameter:	20/25 mm
Pipe locking:	no
Clamp fixed in position:	no
Equipment:	without
Lamp hook attachment:	no
Socket:	without
With shielding:	no
Housing feed-through through knockout opening:	yes
With rotating Ring:	no
Special application:	other
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	without
Transparent cover:	no
