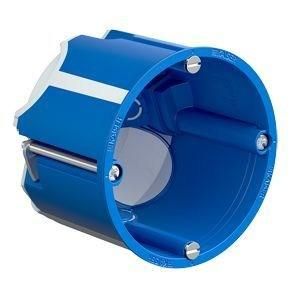

Kaiser sound insulation D: 68mm T: 61mm blue cavity wall device junction box, 9069-04

In stock

SKU: 497671

Price on request

€9.34

€0

Overview

For soundproof walls, also for installation directly opposite one another, from wall thickness 125 mm, can be combined with each other and with the device box, for panel thicknesses up to: 40 mm, 6 cable entries up to Ø 11.5 mm, 2 pipe entries up to M25, connecting pieces per PU: 5, halogen-free, dimensions (D x Ø): 61 x 68 mm

Property	Value
With screws:	no
Depth:	49 mm
Material:	Plastic
Color:	blue
Sealable:	no
Halogen-free:	no
Protection class (IP):	IP3X
Shape:	round
Diameter:	68 mm
Mounting type:	Hollow wall
Design:	Single
Design:	Device junction box/box
With nail tabs:	no
Windproof:	no
Introduction from the rear:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	no
Functional integrity:	without
Fastening of the devices:	screws
Pipe locking:	no
Equipment:	without
Light hook attachment:	no
Socket:	Tunnel socket
With shielding:	no
Housing feed-through through knockout opening:	no
With rotating ring:	no
Special application:	Sound insulation
Housing feed-through through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	without
Transparent cover:	no
