ESCHA 8039982 HT-SWKP4-5-HT-SWSP4/S2430 connecting cable

In stock

SKU: 621942

Price on request

€39.57

€0

Overview

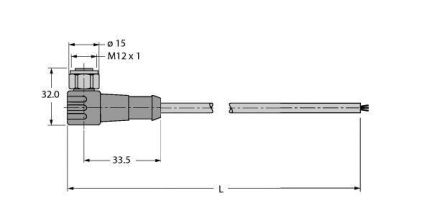

Fieldbus cable for fieldbus systems, according to IEC61158-2, 4-pin, fieldbus cable, type A according to IEC 61158-2, PVC outer jacket, color black, oil, gas and sunlight resistant, temperature range -40 ... +75 °C, cable cross-section: 18/7 AWG (0.8 mm2), cable length: 2.5 meters, angled coupling M12, stainless steel, open end

Property	Value
Rated current In:	4 A
Color of the cable jacket:	white
With LED display:	no
Material of the Contact base body:	CuZn
Number of poles:	4
Arrangement of cable feed, field side:	angled
Type of plug contact, housing side:	Male (plug)
Arrangement of cable feed, housing side:	angled
Cable length:	5 m
Halogen-free:	no
Shielded:	no
Cable design:	multi-core
Radiation-crosslinked:	no
Permissible external cable temperature after installation without vibration:	+260 °C
