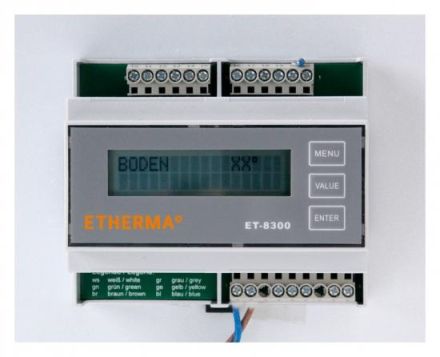

Etherma 33691 ET-8300 control

In stock
SKU: 720338
€580.47
Into a basketIn the basketGo

Overview

The ET-8300 control system is used for the fully automatic, electrical heating of open spaces, garage driveways, stairs, ramps, roofs and gutters. In contrast to conventional systems with manual control (feeling-dependent) or thermostatically controlled (only temperature-dependent), the heating is switched on fully automatically when there is a risk of slippery surfaces, i.e. snow, ice or freezing rain, and switched off again after defrosting. This achieves energy savings of up to 80% compared to thermostatically controlled systems. Sensors are available separately. Ambient temperature: -20 °C to °C, LCD display, 2 inputs (humidity sensor and temperature sensor), voltage: 230 V.

Property Value
Version: digital
Rated voltage: 230 V
Rated frequency: 50 Hz
Number of channels: 1
Text guidance in the display: yes
24 h program: no
Weekly program: no
Number of basic programs ex works: 1
Holiday program: no
Input for time program: no
Automatic summer/winter time changeover: no
Operating mode switch: yes
Switching preselection: no
Nominal switching current at 250 V, potential-free: 16 A
Nominal switching current at 230 V, not potential-free: 16 A
Protection class (IP): IP20
Width in modular spacing: 6
Installation depth: 58 mm
Contact design: Opener
Sensor type: Remote sensor
Class of temperature controller: I
Power consumption in standby mode (solstandby): 15 W

Characteristics

Number of channels1
Rated frequency50 Hz
Operating mode switchYes
Class of temperature controllerI
ManufacturerEtherma
HAN33691
GTIN9120015729916
VersionDigital
Rated voltage230V
Width in pitch units6
IP protection)IP20
Sensor typeRemote sensor
