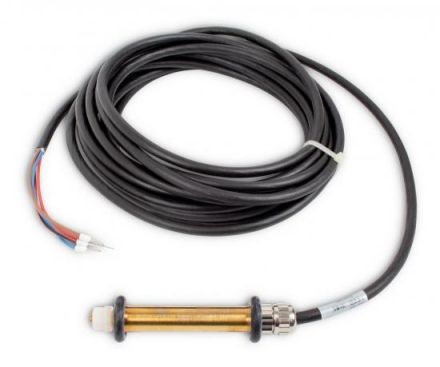

Rod-shaped sensor ET-3354 for the combined measurement of temperature and humidity values in gutters and adjacent areas such as flat roofs and downpipes, but also in special cases such as satellite dishes, sewage treatment plants or railway tracks. Robust design made of brass, fully encapsulated. Very compact design with axial cable outlet and screw bolt for fixing the position. Diameter 12 mm without support rings, L 105 mm, connecting cable 6 m, thread M6, temperature range -30 °C to °C, humidity range -20 °C to °C, protection class IP 68.
Property | Value |
Area of application: | outside |
With fastening material: | no |
Suitable for wall mounting: | no |
Suitable for ceiling mounting: | no |
Suitable for duct mounting: | no |
Suitable for Pipe mounting: | no |
Suitable for air: | yes |
Suitable for liquids: | yes |
Suitable for gases: | no |
With housing: | yes |
Sensor element inside the housing: | yes |
Sensor element outside the housing: | no |
Fixed cable on the sensor: | yes |
Cable length: | 6 m |
Sensor length: | 110 mm |
Sensor element diameter: | 22 mm |
Element material: | other |
Technology: | other |
Active temperature measurement: | yes |
Passive temperature measurement: | no |
Average temperature measurement: | no |
Number of measuring points: | 1 |
CO2 measurement: | no |
VOC measurement: | no |
Measurement of the rel. Humidity: | yes |
Measurement of absolute humidity: | no |
Enthalpy measurement: | no |
Measurement of dew point: | no |
Fine dust measurement (PM): | no |
Temperature measuring range: | 75 °C |
Measurement range of relative humidity: | 0 to 100 % |
Offset setting possible: | no |
Trend display: | no |
Error storage possible: | no |
Sensor type: | PTC |
Tolerance: | 5 % |
Potentiometer with adjustment knob: | no |
Supports protocol for BACnet: | no |
Supports protocol for Modbus: | no |
Supports protocol for MP (Multi Point): | no |
Supports protocol for KNX: | no |
LoRa technology: | no |
NFC (Near Field Communication): | no |
Bluetooth: | no |
Wi-Fi compatible: | no |
Standby button: | no |
Wireless: | no |
With display: | no |
Type of power supply: | Mains connection cable |
Design of the electrical connection: | other |
Rated supply voltage DC: | 12 V |
With reverse polarity protection: | no |
Max. Ambient humidity (non-condensing): | 100 % |
Ambient temperature: | 75 °C |
Explosion-proof: | no |
Protection class (IP): | IP67 |
Housing height: | 22 mm |
Housing width: | 22 mm |
Housing depth: | 110 mm |
Housing color: | other |
UV resistant: | yes |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | no |
