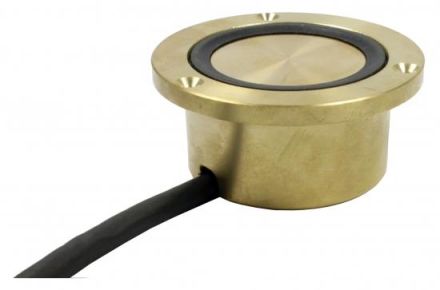

The ET-3356 is a floor sensor for the combined measurement of temperature and humidity values in open spaces that can be driven on or walked on. It has a robust design made of brass and is fully encapsulated. Thanks to its very low height, it is particularly suitable for stairs, terraces, etc. The connection cable can be routed either downwards or to the side. Incl. 6 m connecting cable. Diameter 68 mm, height 31 mm (cable to the side) or 65 mm (cable downwards), load capacity 20 kN, temperature range -30 °C to °C, humidity measurement -20 °C to °C.
| Property | Value |
| Area of application: | outside |
| With fastening material: | no |
| Suitable for wall mounting: | no |
| Suitable for ceiling mounting: | no |
| Suitable for duct mounting: | no |
| Suitable for pipe mounting: | no |
| Suitable for air: | yes |
| Suitable for liquids: | yes |
| Suitable for gases: | no |
| With housing: | yes |
| Sensor element inside the housing: | yes |
| Sensor element outside the housing: | no |
| Fixed cable on the sensor: | yes |
| Cable length: | 6 m |
| Material element: | other |
| Technology: | other |
| Active temperature measurement: | yes |
| Passive temperature measurement: | no |
| Average temperature measurement: | no |
| Number of measuring points: | 1 |
| CO2 measurement: | no |
| VOC measurement: | no |
| Measurement of the rel. Humidity: | yes |
| Measurement of absolute humidity: | no |
| Enthalpy measurement: | no |
| Measurement of dew point: | no |
| Fine dust measurement (PM): | no |
| Temperature measuring range: | 75 °C |
| Measurement range of relative humidity: | 0 to 100 % |
| Offset setting possible: | no |
| Trend display: | no |
| Error storage possible: | no |
| Sensor type: | PTC |
| Tolerance: | 5 % |
| Potentiometer with adjustment knob: | no |
| Supports protocol for BACnet: | no |
| Supports protocol for Modbus: | no |
| Supports protocol for MP (Multi Point): | no |
| Supports protocol for KNX: | no |
| LoRa technology: | no |
| NFC (Near Field Communication): | no |
| Bluetooth: | no |
| Wi-Fi compatible: | no |
| Standby button: | no |
| Wireless: | no |
| With display: | no |
| Type of power supply: | Mains connection cable |
| Design of the electrical connection: | other |
| Rated supply voltage DC: | 12 V |
| With reverse polarity protection: | no |
| Max. Ambient humidity (non-condensing): | 100 % |
| Ambient temperature: | 75 °C |
| Explosion-proof: | no |
| Protection class (IP): | IP67 |
| Housing height: | 35 mm |
| Housing width: | 70 mm |
| Housing depth: | 70 mm |
| Housing color: | other |
| UV resistant: | yes |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
