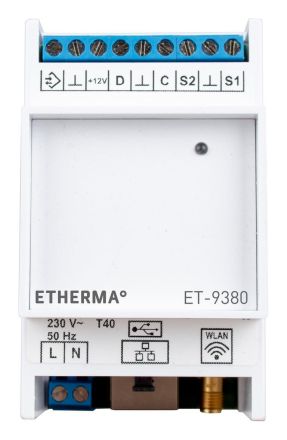

Etherma 40677 ET-9380 WLAN/LAN module

In stock
SKU: 720330
€935.20
Into a basketIn the basketGo

Overview

The compact WLAN/LAN module ET-9380 is the innovation in the ice and snow detection segment. With the help of the gateway, an ice and rapid detection system can for the first time process a weather forecast and inform the customer of its status, be configured (most important settings) and remotely controlled. The gateway is used to connect the ice and snow detector from the ET-9300 and, if necessary, its extension devices to the ETHERMA portal on the Internet. The gateway can be connected to a standard DSL/UMTS router via a network cable and also has WLAN functionality and an antenna connection. The radio antenna for the gateway is included. 230 V.

Property Value
Version: digital
Rated voltage: 230 V
Rated frequency: 50 Hz
Number of channels: 1
Text guidance in display: no
24 h program: yes
Weekly program: yes
Holiday program: yes
Input for time program: no
Automatic summer/winter time changeover: yes
Operating mode switch: no
Switching preselection: no
Protection class (IP): IP20
Width in division units: 3
Installation depth: 61 mm
Class of Temperature controller: II
Power consumption in standby mode (solstandby): 3 W

Characteristics

Number of channels1
Rated frequency50 Hz
Operating mode switchNo
Class of temperature controllerII
ManufacturerEtherma
HAN40677
GTIN9120061398234
VersionDigital
Rated voltage230V
Width in pitch units3
IP protection)IP20
