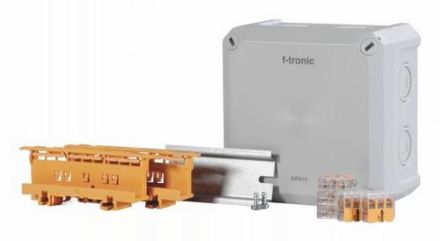

F-TRONIC 7340229 NFK11gr-K4 FR junction box

In stock
SKU: 1012040
€12.87
Into a basketIn the basketGo

Overview

NEPTUN Compact - Small format. Great resistance.. Robust housing in a modern design, screws with mounting position, various break-out entries M20-M40, protection class IP66 through all-round seal, individual fastening options for perfect alignment, membrane entry for NFK08, 4 different sizes, use in damp rooms and in protected outdoor areas

Length: 110 mm
Height: 110 mm
Width: 110 mm
Depth: 67 mm
Mounting type: AP
Equipment: 5x 3-wire connection terminal 4mm²2x terminal holder1x top hat rail (NCHS11)3x double membrane connector M20 (DMS20)2x double membrane connector M25 (DMS25)2x screw cover2x external fastening strap
Max. conductor cross-section: 6 mm²
Introduction M20: 2
Introduction M20/M25: 7
Material box: PS
Material cover: PS
Protection class (IP): IP66
Color: gray

Characteristics

ManufacturerF-TRONIC
HAN7340229
GTIN4034338938076
