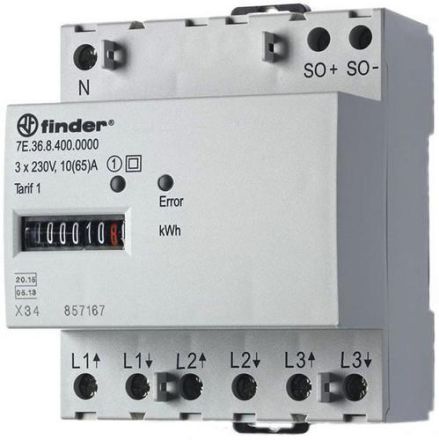

Finder 7E.36.8.400.0010 Active current meter electric 3Ph 3x65A MID with counter

In stock
SKU: 272534
€198.32
Into a basketIn the basketGo

Overview

3-phase three-phase current 3 x 65 A, for recording energy consumption in alternating and three-phase networks in private households, commercial and light industry, type approval from PTB, accuracy class 1/B, device protection class II, high resistance to magnetic and mechanical manipulation, with SO interface according to DIN 43864 for connection to central tariff devices and for energy management, sealable with cap as an accessory, for mounting rail DIN EN 60715 TH35

Property Value
Width in pitch units: 4
Calibrated: no
Pole type: Four-wire
Meter type: electronic
Display type: analog
Mounting type: REG
Accuracy class: B
Protection class (NEMA): 1
Maximum current (Imax): 65 A
Nominal voltage (Un) NL: 230 V
Pulse rate: 100 Imp/kWh (kvarh)
Protection class (IP): IP20
Frequency: 50 Hz
Tariff design: Single tariff
Tariff control: external
Energy type: Active power
Nominal current (In): 10 A
Design: Direct measurement
Measurement type load profile: yes
EDL40 signature: no
With lock code: no
Pulse type: S0
Number of digits: 7
Suitable for: Reference
Backstop: yes
Approval: Measuring Instruments Directive
Pulse output: electrical
Interface design: other

Characteristics

Maximum current (Imax)65 A
Accuracy classB
ManufacturerFinder
HAN7E.36.8.400.0010
GTIN8012823323237
VersionDirect measurement
Implementation of the interfaceOther
Width in pitch units4
Frequency50Hz
Suitable forRelation
Mounting typeREG
Nominal current (In)10A
IP protection)IP20
Protection class (NEMA)1
PermitMeasuring Instruments Directive
