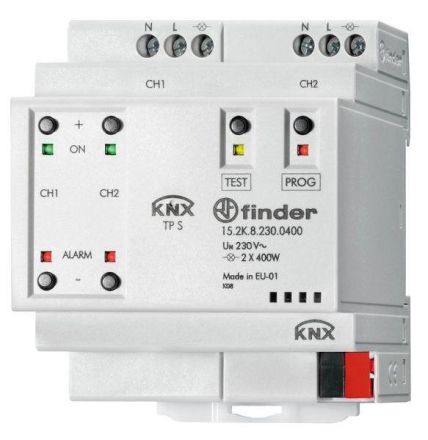

Finder 15.2K.8.230.0400 Input 30VDC 2 Outputs 400W Universal Dimmer KNX

In stock
SKU: 546529
€336.23
Into a basketIn the basketGo

Overview

Universal dimmer for KNX bus, input voltage: 30 V DC, 2 outputs, 400 W each, 230 V AC, halogen lamps 400 W, LED lamps 100 W, electronic transformers 100 W, leading edge/trailing edge dimming process selectable via ETS, for mounting rail 35 mm (EN 60715), width 70 mm

Property Value
Width in division units: 4
Mounting type: REG
Number of outputs: 2
Output power: 400 W
Voltage: 30 V
Frequency: 50 Hz
Design: Dim actuator
Load type: universal and LED retrofit
Protection class (IP): IP20
Power supplement usable: no
KNX bus system: yes
Radio bus system: no
Powernet bus system: no
With bus connection: yes
LON bus system: no
Other bus systems: without
Extension input: no
Local/manual operation: yes
With LED display: yes
Max. Control current: 7 mA
Parallel operation possible: no
KNX radio bus system: no
Removable bus module: no
Bidirectional radio: no

Characteristics

Output power400 W
Voltage30 V
Number of outputs2
HABInput 30VDC 2 outputs 400W
ManufacturerFinder
HAN15.2K.8.230.0400
GTIN8012823425276
Other bus systemsWithout
VersionDi mming actuator
Width in pitch units4
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Frequency50Hz
Radio bidirectionalNo
With bus connectionYes
With LED displayYes
Mounting typeREG
Extension inputNo
IP protection)IP20
Finder 15.2K.8.230.0400 Input 30VDC 2 Outputs 400W Universal Dimmer KNX
