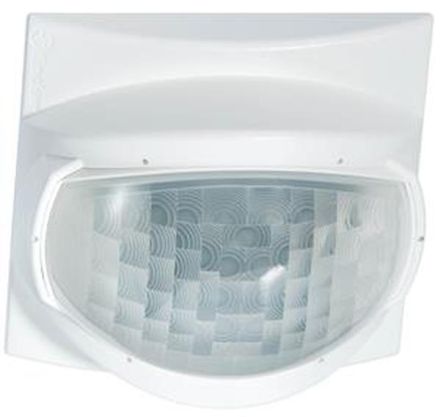

Finder 18.4K.9.030.0000 1 normally open contact 10A with KNX interface motion detector

In stock
SKU: 546530
€264.63
Into a basketIn the basketGo

Overview

Motion detector for passage areas, motion detection up to 30 meters long and 4 meters wide, 1 potential-free normally open contact for 10 A, max. inrush current 100 A - 5 ms, contact material AgSnO2, suitable for ceiling, flush or surface mounting. Accessories for various mounting variants included in the package, max. switching capacity AC1 2500 VA, max. switching capacity AC15 450 VA. Lamp loads: incandescent and halogen lamps 1000 W, energy saving lamps 300 W, LED (230 V AC) 300 W, LV halogen lamps or LED with electronic ballast 300 W, LV halogen lamps or LED with conventional ballast 500 W, fluorescent lamps with electronic ballast 500 W, fluorescent lamps with conventional ballast 350 W, device switches at zero crossing, integrated setting option for the brightness threshold 1-500 lx, switch-off delay time and sensitivity (reduction of the detection range), quick installation thanks to push-in connections, supply voltage 110-230 V AC, for connection to KNX bus

Property Value
Number of channels: 4
Optimal mounting height: 3 m
Color: white
Design: motion detector
Mounting type: flush-mounted
KNX bus system: yes
Max. range to one side: 15 m
Max. range frontal: 2 m
Min. duty cycle: 0.1 s
Max. Duty cycle: 1080 min
Detection field diameter on floor: 30 m
Response brightness adjustable: yes
Number of binary inputs: 4
Teach function for response brightness: no
Self-learning switch-off delay: no
Bus system radio bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: without
Material: plastic
Material quality: thermoplastic
Surface: untreated
Surface finish: matt
RAL number (similar): 9010
With bus connection: yes
Extension input: yes
Creep under protection/rear field monitoring: no
Animal corridor: no
Staircase monitoring: yes
Transparent: no
KNX radio bus system: no
Bidirectional radio: no
Operating mode switch: no
Min. depth of the device box: 46 mm

Characteristics

Number of channels4
Operating mode switchNo
Self-learning switch-off delayNo
HAB1 normally open contact 10A with KNX interface
ManufacturerFinder
HAN18.4K.9.030.0000
GTIN8012823422411
Other bus systemsWithout
Response brightness adjustableYes
VersionMotion detector
Surface finishFrosted
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Detection field diameter on floor30m
ColorWhite
Radio bidirectionalNo
Max. duty cycle1080 min
Max. range frontal2m
Max. range to one side15m
Min. duty cycle0.1s
Min. depth of the device box46 mm
With bus connectionYes
Mounting typeFlush-mounted
Extension inputYes
SurfaceUntreated
Optimal mounting height3m
RAL number (similar)9010
Teach function for response brightnessNo
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
MaterialPlastic
Material qualityThermoplastic
