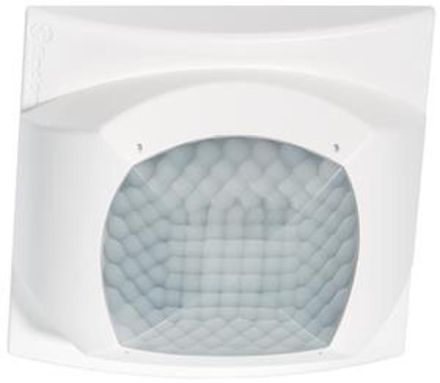

Finder 18.5K.9.030.0000 with KNX interface motion and presence detector

In stock
SKU: 424962
€243.83
Into a basketIn the basketGo

Overview

Motion and presence detector, for ceiling mounting UP/AP, detection area square, 64 m² (movement 8x8m) (sitting presence 4x4m), mounting height 3m with integrated bus coupler for connection to KNX bus, movement, monitoring and switch-off time freely adjustable from 1sec to 18h, adjustable sensitivity, setting of the motion monitoring time, automatic mode, follow-up time adjustable.

Property Value
Number of channels: 3
Optimal mounting height: 3 m
Color: white
Design: Presence detector
Mounting type: Flush-mounted
KNX bus system: yes
Max. range to one side: 4 m
Max. range frontal: 4 m
Min. duty cycle: 0.1 s
Max. Duty cycle: 1080 min
Detection field diameter on floor: 8 m
Response brightness adjustable: yes
Number of binary inputs: 4
Teach function for response brightness: no
Self-learning switch-off delay: no
Bus system radio bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: without
Material: plastic
Material quality: thermoplastic
Surface: untreated
Surface finish: matt
RAL number (similar): 9010
With bus connection: yes
Extension input: no
Creep under protection/rear field monitoring: no
Animal corridor: no
Staircase monitoring: yes
Transparent: no
KNX radio bus system: no
Bidirectional radio: no
Operating mode switch: no
Min. depth of the device box: 46 mm

Characteristics

Number of channels3
Operating mode switchNo
Self-learning switch-off delayNo
HABWith KNX interface
ManufacturerFinder
HAN18.5K.9.030.0000
GTIN8012823412795
Other bus systemsWithout
Response brightness adjustableYes
VersionPresence detector
Surface finishFrosted
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Detection field diameter on floor8m
ColorWhite
Radio bidirectionalNo
Max. duty cycle1080 min
Max. range frontal4m
Max. range to one side4m
Min. duty cycle0.1s
Min. depth of the device box46 mm
With bus connectionYes
Mounting typeFlush-mounted
Extension inputNo
SurfaceUntreated
Optimal mounting height3m
RAL number (similar)9010
Teach function for response brightnessNo
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
MaterialPlastic
Material qualityThermoplastic
