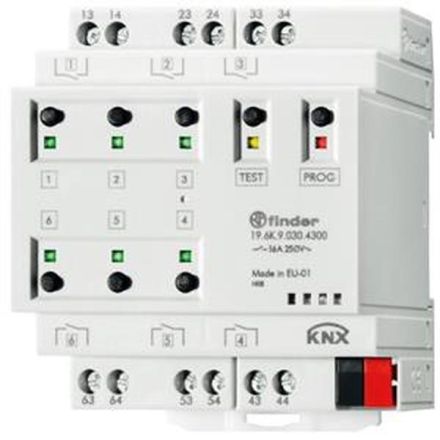

KNX switching actuator for DIN rail, with screw terminals, for series installation. 6 output contacts for 16 A, maximum inrush current up to 120 A - 5 ms. Contact material AgSnO2. The contacts can be individually configured as normally open or normally closed. LED status display for each input. Time functions: ON, OFF, flashing, staircase function. Logical links and analog functions for each output (AND, OR, XOR, PORT, threshold functions). Additional features: scene management and manual output control on the device. Supply voltage/current: 30 V DC - 12 mA via KNX bus. Contact loads: max. switching capacity AC1-4000 VA, AC15 (230 V AC) 750 VA, 1-phase motor load AC3 (operation 230 V AC) 0.5 kW. Lamp loads: incandescent or halogen lamps 2000 W, fluorescent lamps with electronic ballast 1000 W, fluorescent lamps with conventional ballast 750 W, energy saving lamps 400 W, LED (230 V AC) 400 W, halogen lamps or LED with electronic ballast 400 W, halogen lamps or LED with conventional ballast 800 W. Electrical service life AC1: 100,000 switching cycles. Bistable relay with ENEC approval. Dimensions: height 88.8 mm, depth 60.8 mm, width 70 mm. Ambient temperature: -5 ... + 45 °C, protection class IP 20.
