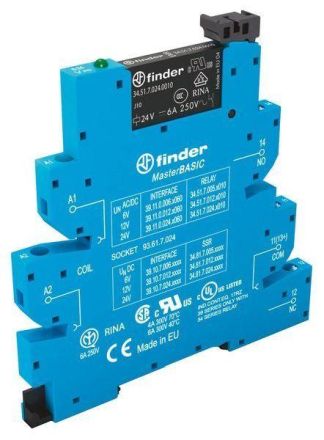

Finder 39.11.0.024.5060 coupling relay

In stock

SKU: 774447

Price on request

€14.63

€0

Overview

MasterBASIC narrow coupling relay for DIN rail, with screw connections, modular design, 1 changeover contact for 6 A, contact material AgNi hard gold-plated, universally usable as a coupling relay in the input to the PLC or in the output of the PLC to control actuators, LED display, terminals A1 or A2 and 11 can be bridged, coil voltage 24 V AC/DC

Property	Value
Number of contacts as changeover contacts:	1
Rated control supply voltage Us at AC 50 Hz:	24 V
Rated control supply voltage Us at AC 60 Hz:	24 V
Rated control supply voltage Us at DC:	24 V
Type of voltage for actuation:	AC/DC
Design of the electrical connection:	screw connection
Drive, polarity:	unpolarized
Height:	87 mm
Width:	6.2 mm
Depth:	90.7 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	6 A
With LED display:	yes
