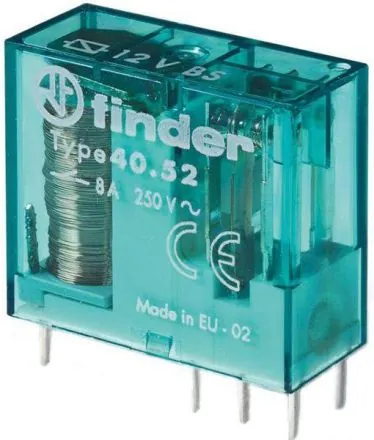

Finder 40.52.6.110.0000 1 coil 2 changeover contacts 8 A coil 110 V AC/DC bistable print relay

In stock

SKU: 837961

Price on request

€8.28

€0

Overview

Plug-in/print relay, bistable (remanence relay with one coil), 2 changeover contacts for 8 A / 250 V AC Contact pin pitch: 5.0 mm Contact material AgNi, coil data 110 V AC/DC*, 1 W / 1 VA, 11000 Ohm *external components are required for resetting and controlling with an AC voltage (see Series 40 catalog) Relay protection class: RT II

Property	Value
Number of contacts as changeover contacts:	2
Rated control supply voltage Us at AC 50 Hz:	110 V
Rated control supply voltage Us at AC 60 Hz:	110 V
Rated control supply voltage Us at DC:	110 V
Type of voltage for actuation:	AC/DC
Design of the electrical connection:	Plug connection
Drive, polarity:	polarized
Height:	25 mm
Width:	12.4 mm
Depth:	29 mm
Switching behavior of the drive:	Remanence
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	no
Protection class (IP):	IP20
Rated current:	8 A
With LED display:	no
